Essential Pellet Dies for SZLH 400 With Maximum Efficiency and Output in Pellet Manufacturin

Brand Name : Shanbao

Model Number : SZLH 400

Certification : ISO 9001:2015

Place of Origin : CHINA

MOQ : 1 piece

Price : USD500-3000/PIECE

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 PCS/Month

Delivery Time : 20-30 Days

Packaging Details : Plywood case

Material : X46Cr13 Stainless Steel

Application : For poultry feed

Model type : SZLH 400

Size : As discussed

Brand : New

Production process : CNC control

Package : Plywood case

Heat treatment : Suitable temperature and high vacuum

Contact Now

The Essential Pellet Dies for SZLH 400 With Maximum Efficiency and Output in Pellet Manufacturin

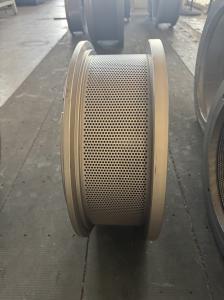

A pellet mill die, also referred to as the pellet mill ring die or stationary die, is an indispensable part of a pellet mill. It is of vital significance in the pellet production process. This die is a fixed, cylindrical metal ring that is placed inside the pellet mill, encircling the rotating roller shells.

It has several key functions. Firstly, in terms of shaping and compaction, when the feed material enters the pellet mill, the rotating roller shells push it through the tiny openings in the die. This action not only molds the feed material into the desired pellet form but also compresses it to the necessary density. Secondly, the extrusion function is crucial. The feed material is pushed out through the die holes, which gives the pellets their cylindrical shape and determines their size. The size and arrangement of the die holes directly affect the final dimensions of the produced pellets.

Moreover, heat generation occurs during the process. As the feed material passes through the die, friction and mechanical work produce heat. This heat helps to gelatinize starches and binders, creating a more cohesive pellet structure. Finally, considering wear resistance, the pellet mill die endures substantial abrasive wear because of the continuous friction and pressure from the feed material. Usually, it is made from wear-resistant materials like high - chrome cast iron or specialized alloys. These materials enable the die to withstand the harsh working conditions and keep its shape and dimensional accuracy intact.

Shanbao Machinery's Pellet Die Application

We have produced many pellet dies for some famous pellet mills, like: CPM, Buhler, Van Aarsen, Andritz, Idah, Matador, PTN, Muyang,
SZLH, Famsun, HR,...

CPM CPM305 Buhler Buhler 35 MUZL MUZL 1200
CPM407 Buhler 40 MUZL 1210C
CPM3016-4 Buhler 42 MUZL 1610/C
CPM3016-5 Buhler 42B MUZL 35
CPM3020-6 Buhler 508 MUZL 42
CPM3020-6 Buhler 508E MUZL 42T
CPM3022-6 Buhler 52 MUZL 460
CPM3022-8 Buhler 530 MUZL 550
CPM7726-7 Buhler 660 MUZL 600
CPM7726-9 Buhler 900 MUZL 600TA
CPM7730-8 MUZL 610
CPM7730-10 MUZL 610TW
CPM7936-14

Application Hole Diameter Compression Ratio
Poultry & Livestock 2.5-4mm 1:4-1:16
Fish Feed 2.0-5.0mm 1:12-1:14
Shrimp Feed 0.8-2.0mm 1:18-1:30
Crab Feed 4.5-10.0mm 1:15-1:26
Biomass and Fertilizer 6.0-8.0mm 1:4.5-1:8

Support and Services:

Pellet Machine Ring Die offers technical support and service for the product. Our support team is available 24/7 to provide quick and efficient help. We are committed to providing an excellent service experience to ensure that you are getting the full benefit of the product.

Technical Support: Our technical support team is available to answer any questions you may have about the product. We are available by phone, email, or online chat. Whether you need help with installation, troubleshooting, or general product information, our team is ready to assist.

Service: We offer a variety of services to ensure that your Pellet Machine Ring Die is running smoothly and efficiently. Our technicians are trained to provide maintenance and repair services for the product. We also provide training and support to ensure that you are getting the full benefit of the product.

If you have any questions or need any assistance, please don't hesitate to contact us. Our team is here to help you get the most out of your Pellet Machine Ring Die.
